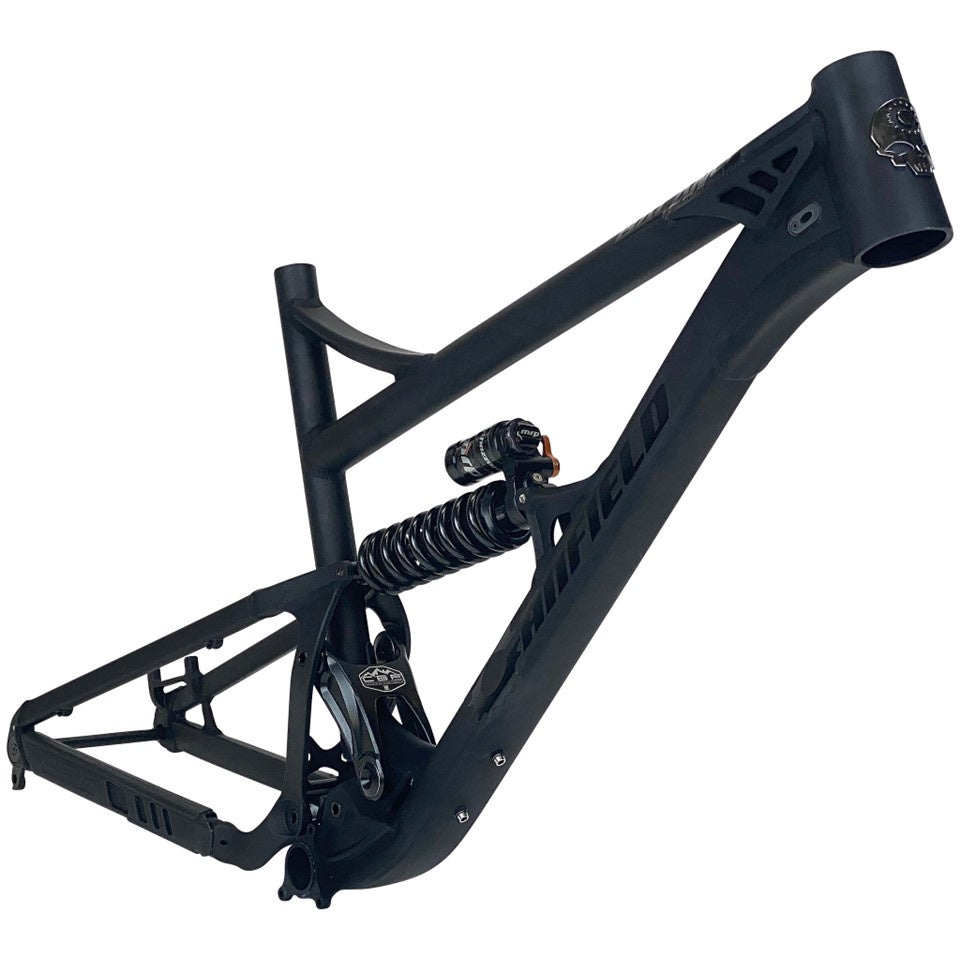

CANFIELD - BALANCE FRAME STEALTH

27.5" WHEELS // 169MM REAR // 170MM FRONT

Pedal. Send. Repeat. Built around the patented Canfield Balance Formula™ suspension system, the Balance is our idea of what an all-mountain bike should be: just as capable of flagrant disregard for line choice and taking big hits in stride as it is of getting you to the top under your own power. Burly enough for bell-to-bell bike-park laps, efficient enough to earn its turns.

The latest generation of our 27.5-inch-wheeled quiver-killing trail-slayer features 169 millimeters of rear travel, boost spacing, a custom CBF chainstay protector and internal cable routing. A slack 64-degree head-angle and long front center combined with a 170-millimeter fork encourage you to take the hot line, while short 16.5-inch chainstays allow you to snap corners and take names.

Canfield has been refining parallel-link suspension for more than two decades, and the result is maximum traction, effortless climbing and no room for excuses when the going gets rough. The Balance’s CBF™ tuned linkage offers smooth, consistent travel and a slightly progressive leverage ratio that makes all 169 millimeters of travel available when you need it most while offering a predictable bottomless feel.

FEATURES

• 27.5” All-Mountain / Enduro

• Mullet Compatible (160mm 29" fork recommended)

• 7005 aluminum with CNC links

• Patented Canfield Balance Formula™ Suspension

• 169mm travel

• Metric shock sizing (230mm x 65mm)

• Boost Spacing

• Custom Chainstay Protector

• Internal Cable Routing

• Tapered headtube

• 15mm Max-type pivot bearings (6902)

• Water-bottle mount

• Replaceable rear derailleur hanger

• Available in Small, Medium, Large and X-Large

FRAME SPECS

• Shock Specs: Metric:

• 169mm travel: 230mm x 65mm (22mmX8mm/36mmX8mm hardware)

• 157mm travel: 230 x 60mm (22mmX8mm/36mmX8mm hardware)

• All frames/bikes are specced with full-stroke shocks

• Recommend fork length: 170mm (160mm – 180mm acceptable range)

• Headset: Tapered 44mm upper/56mm lower

• Bottom bracket: 73mm, threaded

• Seatpost: 30.9mm, stealth dropper compatible

• Seatpost clamp: 35mm

• Rear dropouts: Boost 148mm x 12mm, Canfield axle included

• Rear tire clearance: 70mm/2.76 inches between stays

• ISCG tabs: ISCG 05

• Brake mount: Post 180mm

• Seatpost max insertion: 205mm(S), 225mm(M), 260mm(L), 305mm(XL)
