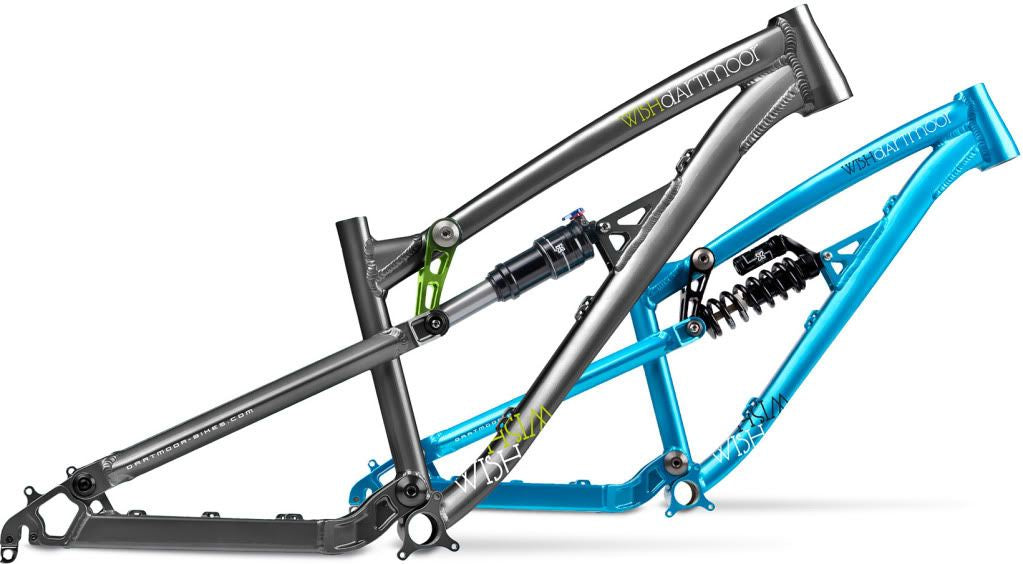

DARTMOOR - WISH 2014

Wish is our new project, which we have been working on over the past two years. This frame is for all wishing to leave the city jungle or backyard dirt jumps to taste some real MTB freeriding. When designing the Wish we focused on building a lightweight suspension frame that will kick ass in the worlds best bikeparks, which are becoming so popular now. Compact geometry with aggressive angles makes the Wish really agile and reliable even at high speeds plus handles as well in the air as hitting up your local downhill trail. If you want to feel that you’re fully in control your bike - go for the Wish.

Frame is made of butted and heat treated 7005 aluminium with 160mm travel. Suspension has linear characteristic of the first stage of the stroke and becoming strongly progressive in the second stage. This makes the frame very sensitive to small bumps but also allows control for those the big hits and harsh landings. Tapered head tube works perfect with single crown forks with 160mm-180mm travel.

Available options: w/o shock; w/X-Fusion Vector R coil shock; w/X-Fusion O2 RCX AV air shock.

SPECIFICATION
Frame travel: 160mm;
Shock size: 216x63mm;
Bushing size: 22.2x8mm;
Dropouts: 135x10mm;
BB: Euro 73mm;
Headsets: tapered (34mm/49,57mm);
Seat post diam.: 31.6mm;
Seat clamp diam.: 34.9mm;
Size: 14”;
Weight: 2.98kg (w/o shock).

Recommended fork travel: 160-180mm.

GEOMETRY
Top tube: 559mm
Top tube (effective): 556mm
Rear triangle: 425mm
Head tube: 115mm
Seat tube: 343mm
BB height (160mm travel): +12mm
BB height (180mm travel): +25mm
WB (160mm travel): 1128mm
WB (180mm travel): 1135mm
HT angle (160mm travel): 66.5°
HT angle (180mm travel): 65.5°
ST angle (160mm travel): 75°
ST angle (180mm travel): 74°

Geometry calculated for the Fox 36 type forks:
with 160mm travel (545mm height)
with 180mm travel (565mm height)
