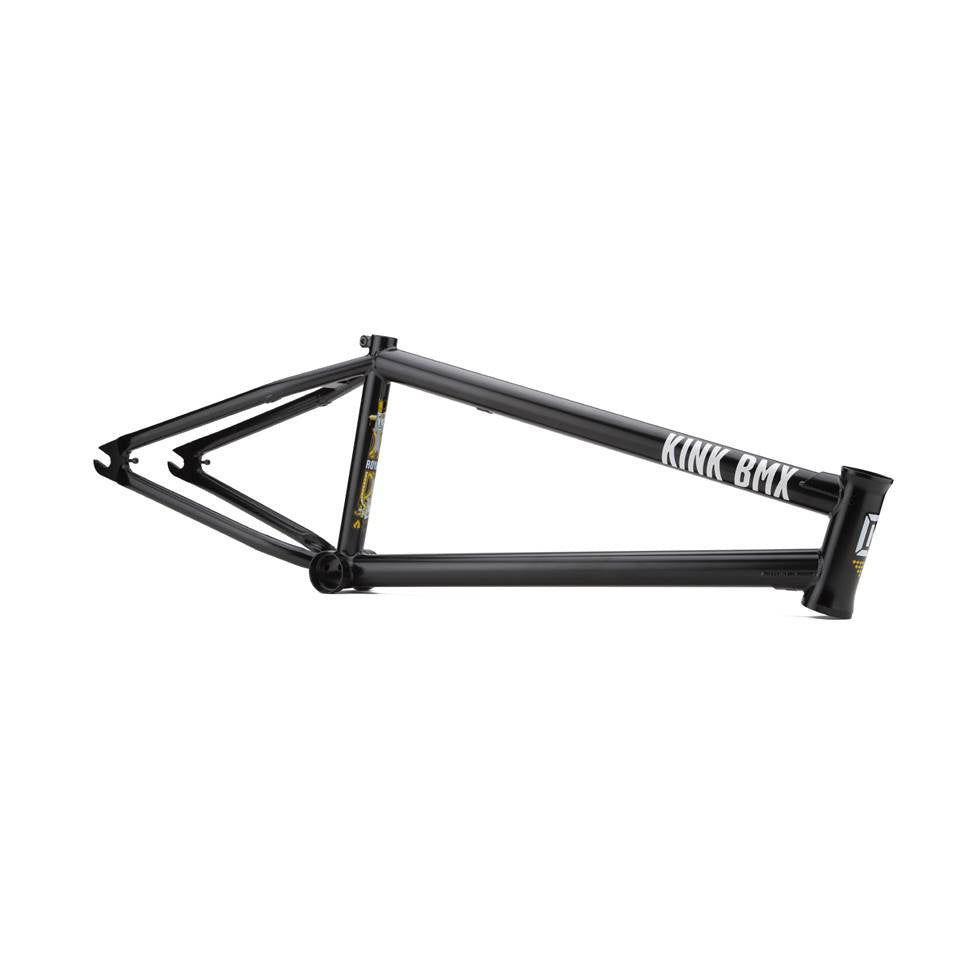

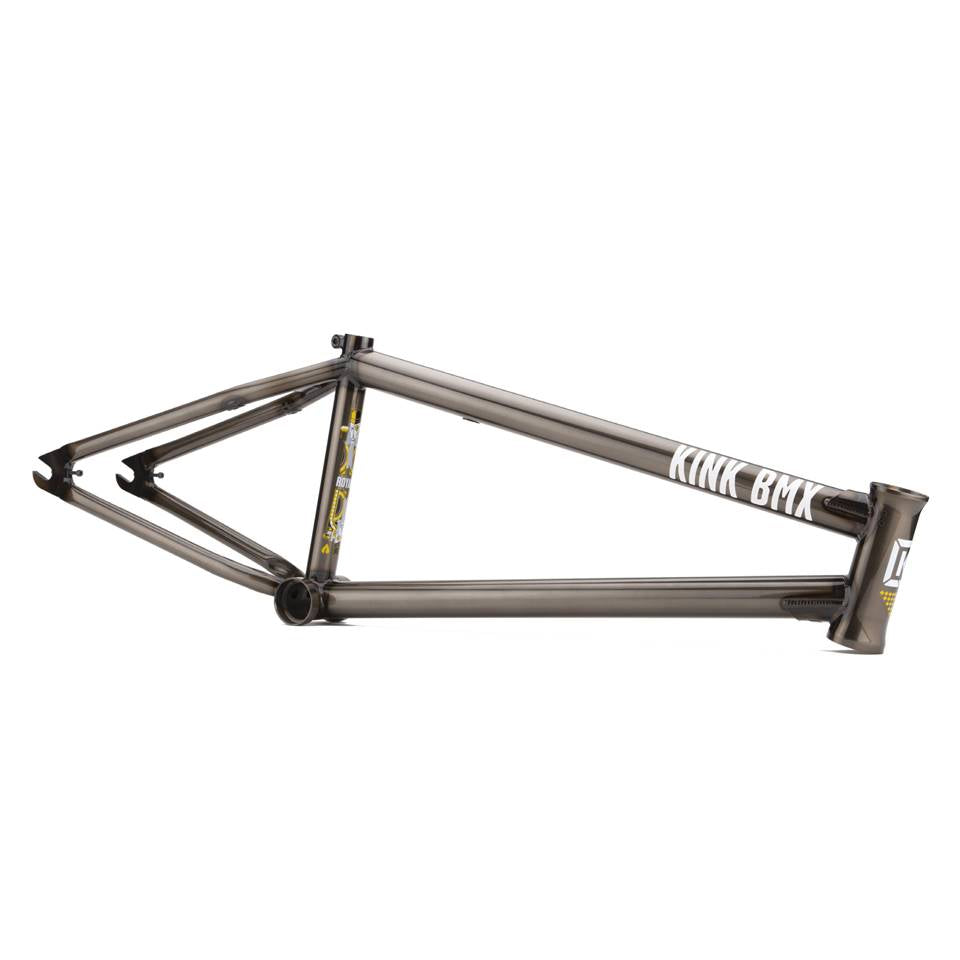

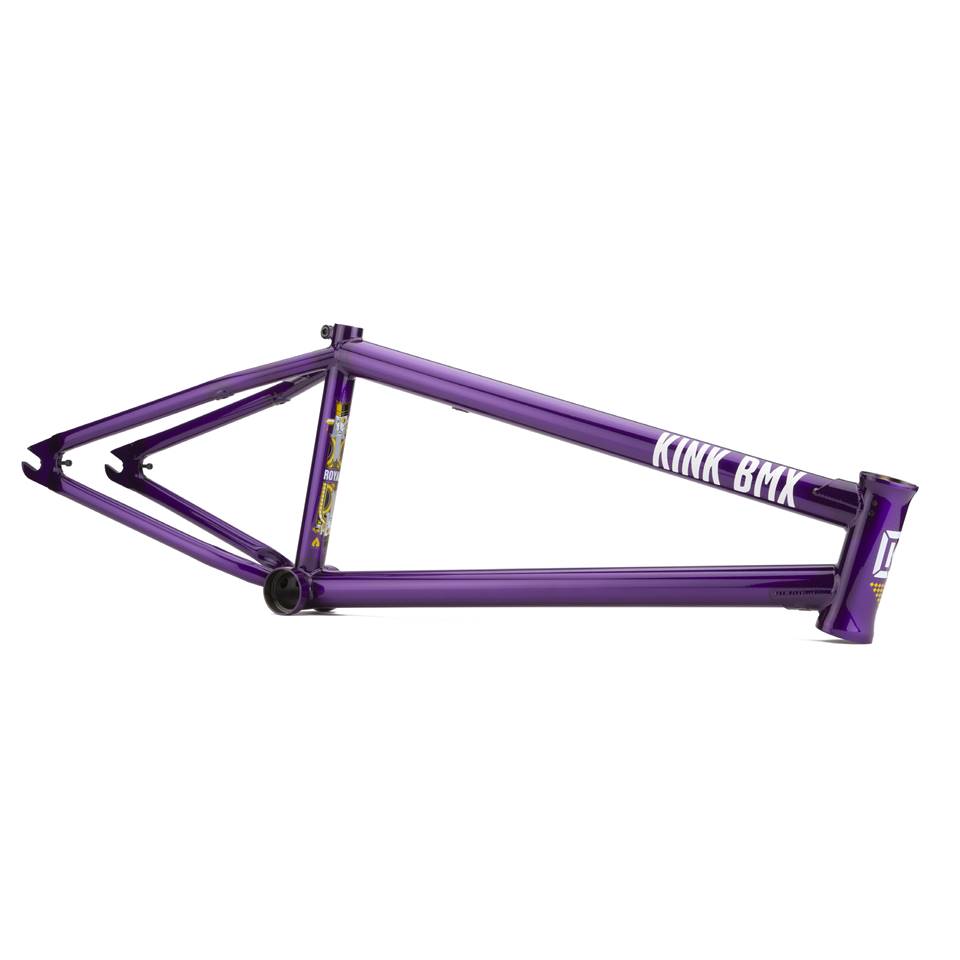

KINK - ROYALE FRAME

SPECIFICATIONS

Colors - Black ED, Gilded Bronze, Imperial Purple
Material - 100% 4130 Chromoly Tubing
Headtube - Integrated Campy Spec
Dropouts - Laser Cut with Integrated Chain Tensioners
Bottom - Bracket Internally and Externally Machined Mid BB
Braking - Removable Through-Bolt Brake Mount System (Hardware Not Included)
Particulars - Toptube and Downtube Gussets Integrated Seat Clamp Interior Chainstay Forming for 2.55” Tire Clearance CNC’d Seatstay Bridge with Kink Badge Inlay
Weight - 5lb 4oz (20.5”)

Toptube Sizes - 20.5”, 20.75”, 21”, 21.25”
Chainstay Length - 12.5” Slammed
Bottom Bracket Height - 11.7”
Standover Height - 9”
Headtube Height - 5”
Headtube Angle - 76°
Seattube Angle - 71°

INFORMATION
All street, all day. The Royale frame features progressive geometry throughout the design with premium grade materials and craftsmanship to back them up. A 76-degree headtube angle and 12.5” chainstay length make the Royale frame compact and responsive, ideal for modern day street and plaza riding. 100% 4130 chromoly tubing and both toptube and downtube gussets provide a ton of strength and stiffness. Custom interior chainstay forming provides tire clearance up to 2.55” and the seatstay bridge features a brass badge inlay. This frame comes standard with an integrated seat post clamp, integrated chain tensioners, and removable brake mount lugs for those looking to install brakes.
