KINK - GAP XL 2022

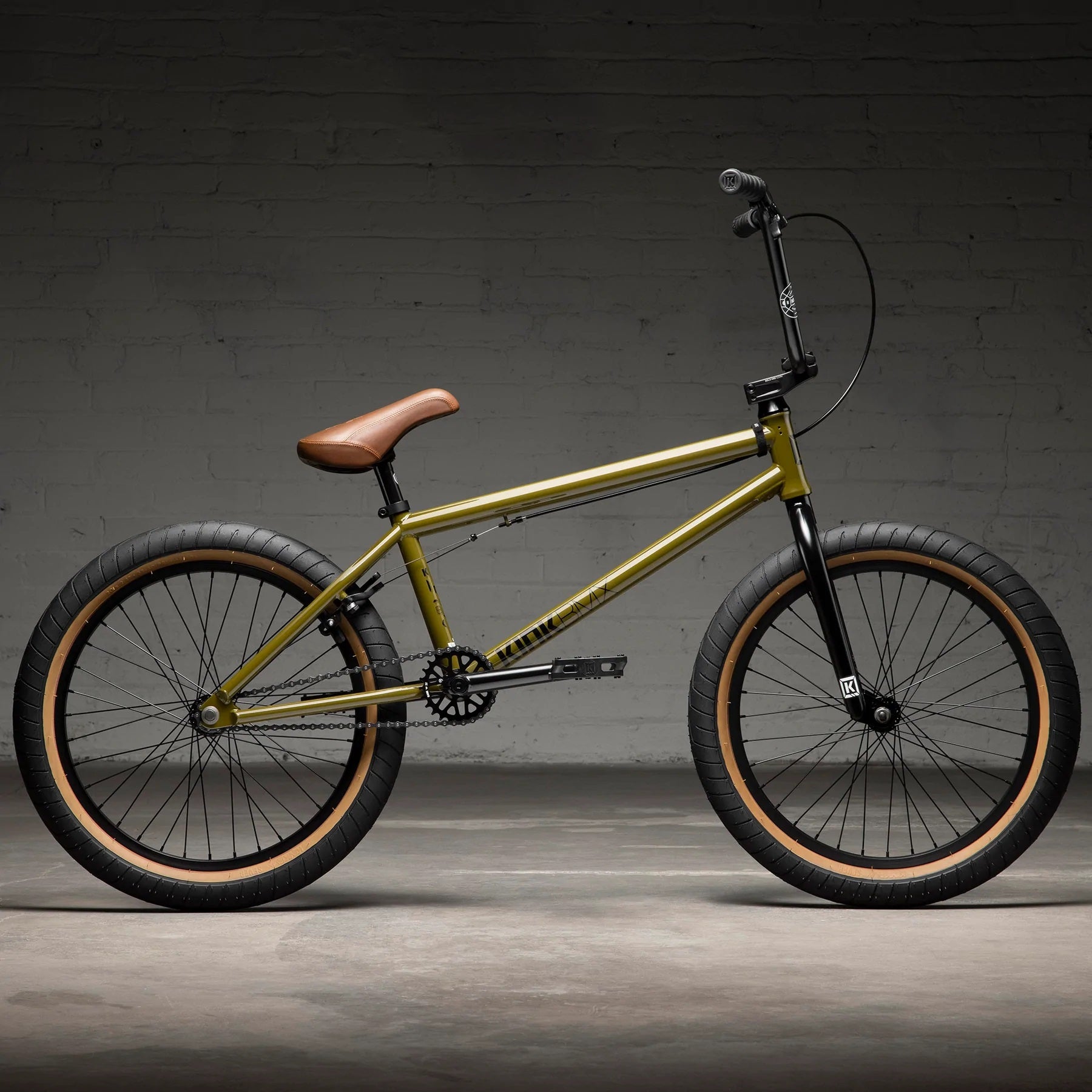

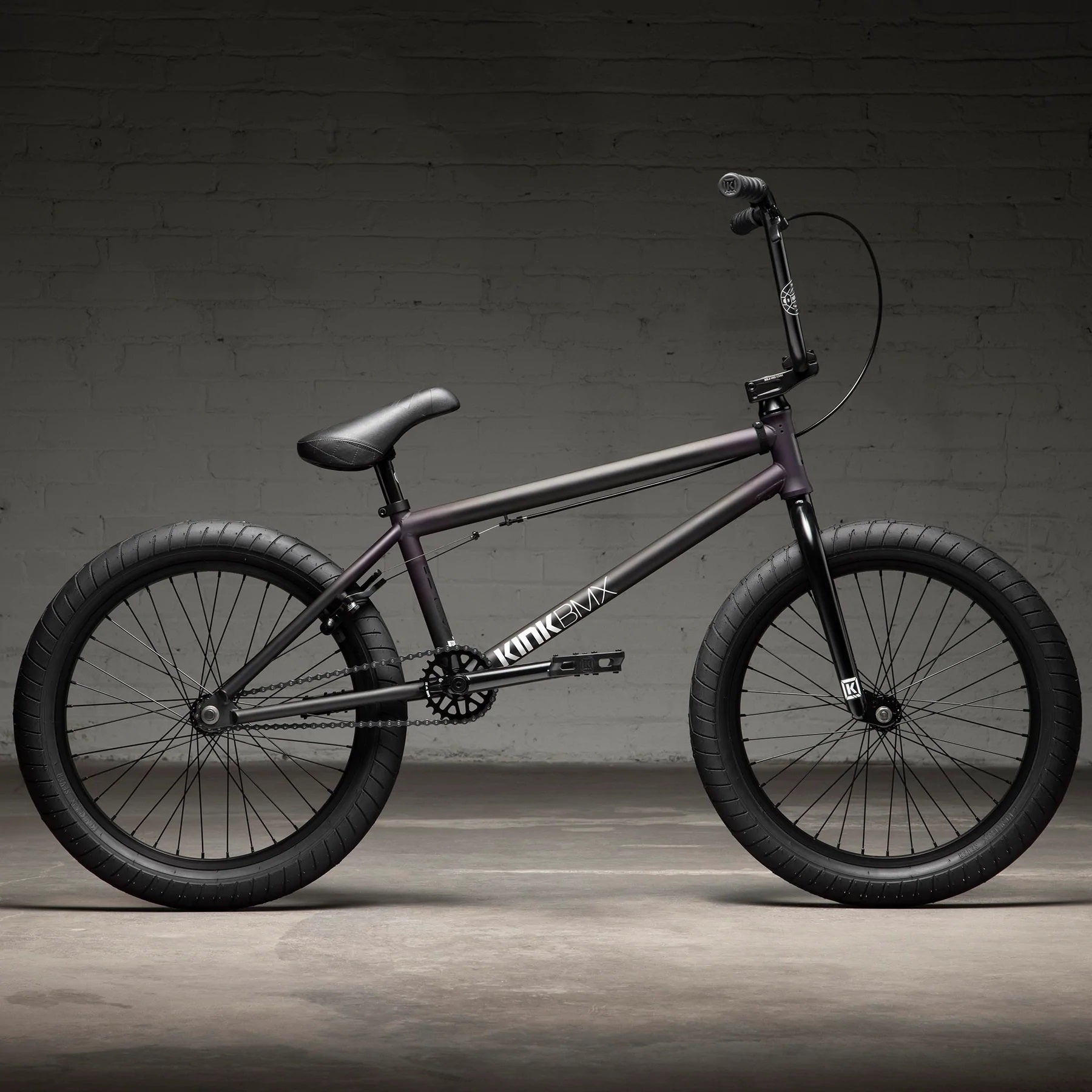

The Gap XL is just that, an extra-large 21” toptube version of the tried and true Kink Gap. Featuring modern geometry, the frame, fork, and bars also add some 4130 chromoly into the mix and is available in two great colorways, Gloss Woodsmen Green and Matte Spotlight Purple. Components found on the Gap XL take things up a notch and are not to be missed.

Not only will it look the part, the taller 9.25” Kink T925 bars, Kink Stryker forks, Kink Bold HRD stem, sealed Mission Engage cassette hub, and Kink Ridge 3-piece tubular chromoly cranks help it to feel and perform the part. The addition of a Stealth seat and seat post are not to be overlooked either and add both adjustability and modern compatibility. Modern frame geometry brings a lower bottom bracket and raised standover height to the Gap XL, for a stable ride.

GEOMETRY
Toptube Length 21"
Chainstay Length 13.25"
Headtube Angle 75°
Seattube Angle 71°
Standover Height 9″
Bottom Bracket Height 11.6"
Fork Offset 32mm

TECH SPECS
FRAME Kink Gap XL 100% 4130 Chromoly HT, TT and DT
PEDALS Kink Hemlock
FORK Kink Stryker 4130 Chromoly Steerer, Tapered Fork Legs
CHAIN Mission 410
BARS Kink T925 9.25" 100% 4130 Chromoly
SPROCKET Mission Rank 25T
GRIPS Kink Ace Flangeless
SEAT Kink Plymouth/Bomber Stealth
STEM Kink Bold HRD 50mm
SEAT POST Mission Stealth
HEADSET Mission Sealed Integrated (41.8 x 45)
SEAT CLAMP Mission Slim Clamp
BRAKE LEVER Mission Token
FRONT HUB Mission Covert Unsealed 3/8″ Axle
BRAKE CABLE Mission L3 Linear
REAR HUB Mission Engage Sealed Cassette 14mm
BRAKES Mission Cease V2
DRIVER 9T
CRANKS Kink Ridge 3pc Tubular Chromoly 170mm - 8 Spline
RIMS Mission X7
BOTTOM BRACKET Sealed Mid 19mm
TIRES Kink Sever 2.4"
PEGS  N/A
WEIGHT  26lb 14oz
