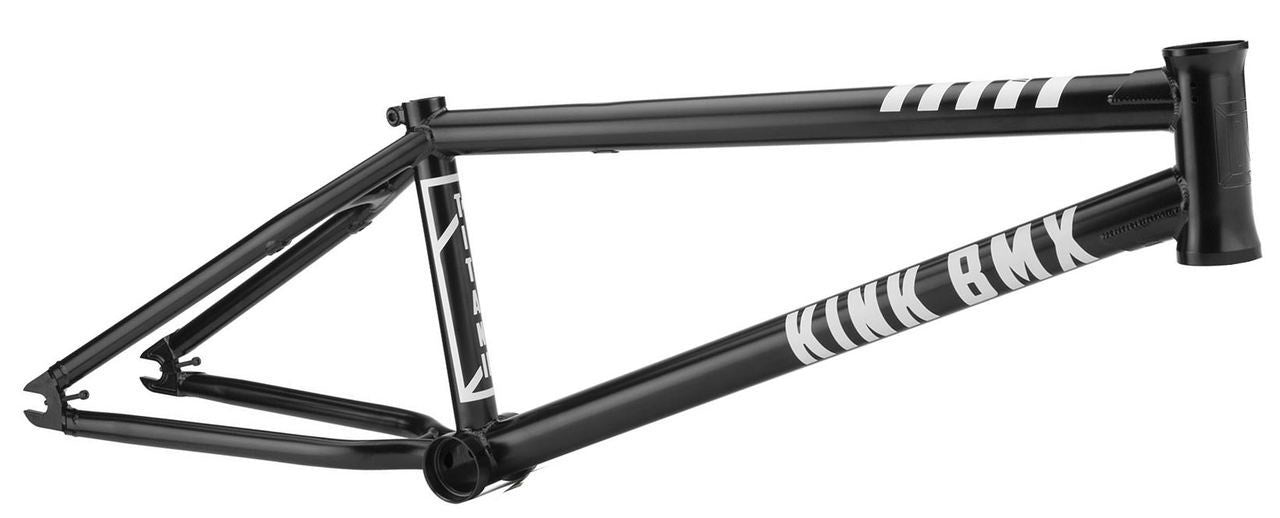

KINK - TITAN II FRAME

INFO

Building on it’s predecessor the Kink Titan frame, the Titan II frame is truly the next generation of Kink frames. The Titan has been our go to frame for Kink Pro riders and amateurs alike, and the Titan II is no different with it’s updated geometry and refined design. All the features you’d expect like integrated chain tensioners, integrated seat post clamp, removable brake mounts and dual gussets are all still present along with the updated shorter chainstay and lower bottom bracket. The re-designed investment cast dropouts are even stronger than before, and the updated investment cast seat stay bridge makes for an even stiffer rear triangle.

SPEC

Colors:Black ED, Matte Raw, Matte Pearl White, Matte Trans Purpskurp, Gloss LA Gold
Material:100% Seamless Sanko 4130 Chromoly Tubing
Headtube:Integrated Campy Spec with CNC Engraving
Dropouts: Investment Cast with Integrated Chain Tensioners
Bottom Bracket:Internally and Externally Machined Mid Size BB
Braking:Removable Through-Bolt Brake Mount System
Particulars:Toptube and Downtube Gussets
Widened Stays for Big Tire Clearance
Integrated Seat Post Clamp
Investment Cast Seatstay and Chainstay Bridges
Weight:4lb 12oz (20.5")

GEOMETRY

Toptube Sizes:20", 20.5”, 20.75”, 21”, 21.25"
Chainstay Length:13" Slammed
Bottom Bracket Height:11.6"
Standover Height:8.5"
Headtube Angle:75°
Seattube Angle:71°
