DARTMOOR BIKES

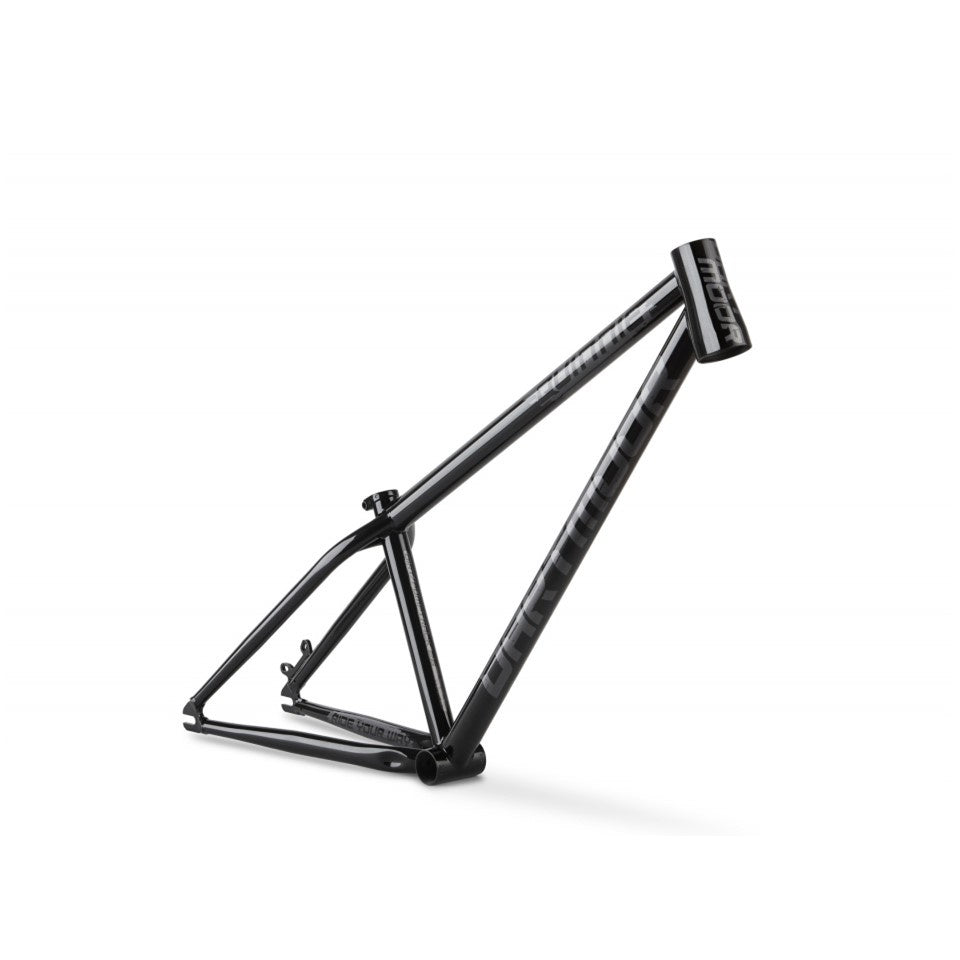

DARTMOOR - QUINNIE TAPERED FRAME
DARTMOOR - QUINNIE TAPERED FRAME
Couldn't load pickup availability
QUINNIE TAPERED
DIRT/PUMPTRACK
WHEEL SIZE - 26"
FRAME - CR-MO 4130
COLOR - GLOSSY BLACK/GREY
DESCRIPTION
New version of Quinnie frame with modern geometry including longer top tube and lower bottom bracket. To upgrade this sweet piece of steel we added also a tapered head tube in IS42/IS52 standard for compatibility with our popular Blink headsets. The frame is still made of high quality seamless Japanese Cr-Mo 4130 steel tubes with Euro BB and integrated seat clamp.
SPECIFICATION
WEIGHT - 2.45kg
SIZES - One size
RECOMMENDED FORK TRAVEL - 80-110mm
MAX TIRE SIZE - 26x2.35"
HUB SIZE - 135x10mm
POST/CLAMP DIAMETER - 27.2mm/integrated
HEADSET TYPE - IS42/IS52
MAX ROTOR SIZE - 160mm
BB TYPE - Euro 68
FRONT DERAILLEUR COMPABILITY - no
